COACHELLA

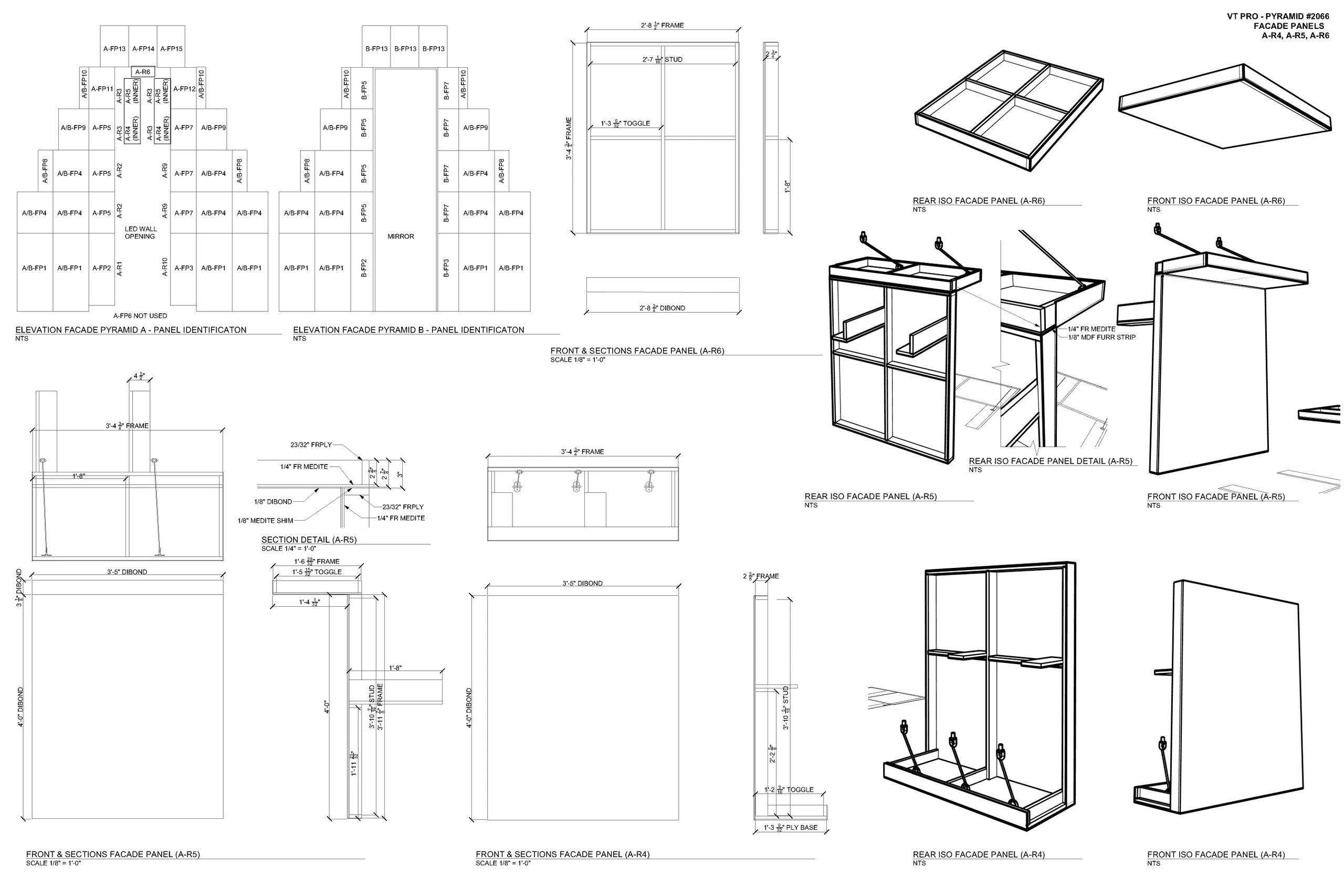

This multi-media installation at Coachella was a collaboration between Childish Gambino and Google Pixel 3. I did the fabrication design and drawings for the two pyramids.

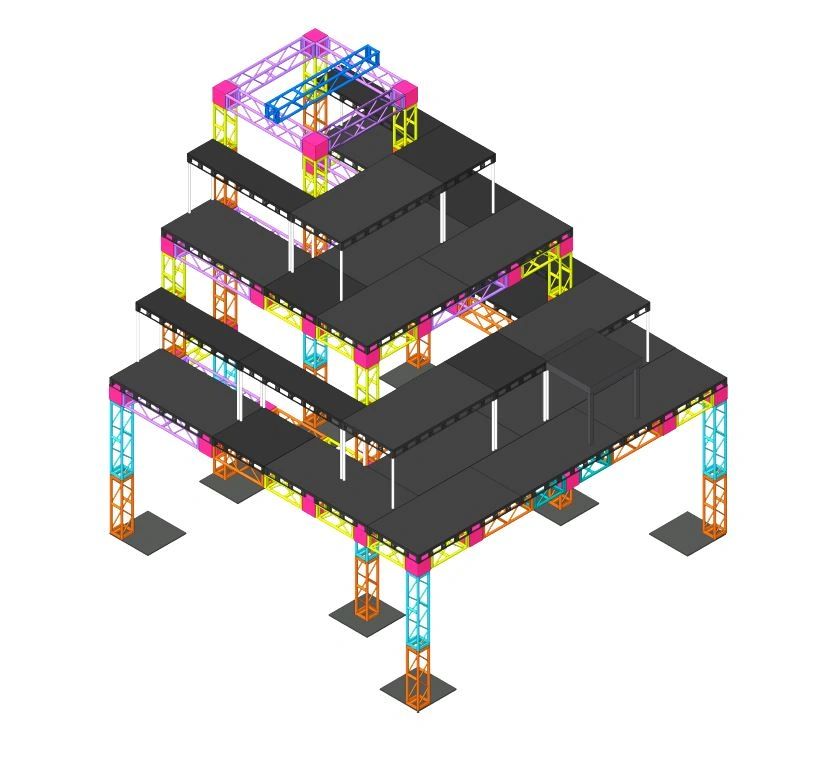

A truss structure with steel decks was constructed then the panels attached to the decks. The pyramids were 26 feet high with a 24 foot x 24 foot footprint

I modeled the pyramid in Rhino and created a few typical panel types for easy building

The panels over the door openings needed to be attached with aircraft cable
